Cast Against Calendered: The Two Films Behind a Wrap
Two films, one name. The way a vinyl sheet is made decides how it stretches, how it holds a print and how it ages on a shaft.
Two words decide most of what an arrow wrap is before any design reaches it: cast and calendered. Neither is a brand and neither is a grade. They name the two industrial routes a vinyl sheet can take from a drum of compound to a roll of film, and the route follows the film onto the tube: how it stretches, how it holds a printed line, how it sits on a curve, and how thin anyone has managed to make it.
Two ways to make the same sheet
Calendering is the older route and, by the square meter, the cheaper one. A vinyl compound is warmed and plasticized until it behaves like a stiff dough, fed through a train of heated rollers, and comes out of the far side as a sheet. The gap between the last pair of rollers sets the thickness, the rollers leave their finish on the surface, and the sheet is wound straight off the machine.
Casting runs in the opposite direction. The compound is prepared as a liquid, spread onto a moving carrier web as a controlled wet layer, and dried. The solvent leaves, the layer solidifies, and the finished film peels off the carrier having never been squeezed into shape. It has set into shape.
Everything else follows from that one difference: a sheet that was pressed into being, and a sheet that was poured into it.
What casting gives a film
A cast film carries no roller memory. Nothing in its manufacture has dragged the material into a preferred direction, so the sheet stays flat on a flat table, shrinks less along its length, and behaves the same way across its width as it does down the middle. That is also why the thin gauges belong to the cast lines. A liquid layer can be laid down at one or two thousandths of an inch and still come out uniform from edge to edge; a calender train has to hold the same figure in the gap between two steel rollers turning under load across a full web width, which is a harder thing to keep honest.
The surface is the other gift. Cast film is smooth at the scale printing cares about, and it accepts detail: thin rules, small lettering, the lines of a seal. The state design tradition leans on exactly that capacity, because a flag is easy to print and a seal is not.
What calendering gives a film
Calendered film is the stock of the bumper sticker and of most thick covering film. It is produced by the mile, it is inexpensive by area, and it is easy to make thick, which is why the ordinary gauges of the calendered lines begin where the cast lines give up. It is stiffer than cast film of the same thickness, it keeps a shape once heat has set it, and it is the material most people picture when the word vinyl comes up.
Stiffness is not a defect on a flat panel. On a tube the width of a finger, it is the whole question, because the film is being asked to close around a small radius at room temperature and stay there without help.
Reading the archive on this point
The shop that used this domain until 2020 put the whole distinction into one sentence. Captures of its home page from 2019 read that the wraps were made from 2 mil cast vinyl, against what the same page called conventional 4 mil bumper sticker material weighing twice as much. The product sheets repeated the other half of the claim: 2 mil vinyl with air release adhesive. Both sentences are still on the record.
The weight half is arithmetic, and the arithmetic holds. At the same area and in the same compound, doubling the thickness doubles the mass, so a 4 mil wrap of a given pattern does weigh about twice its 2 mil version. The cast half is a statement about manufacture, and an archive of pictures and sentences can neither confirm nor refuse it. The desk writes down what the catalogue claimed and what the arithmetic supports, and leaves the rest standing where it is.
How the difference shows at the bench

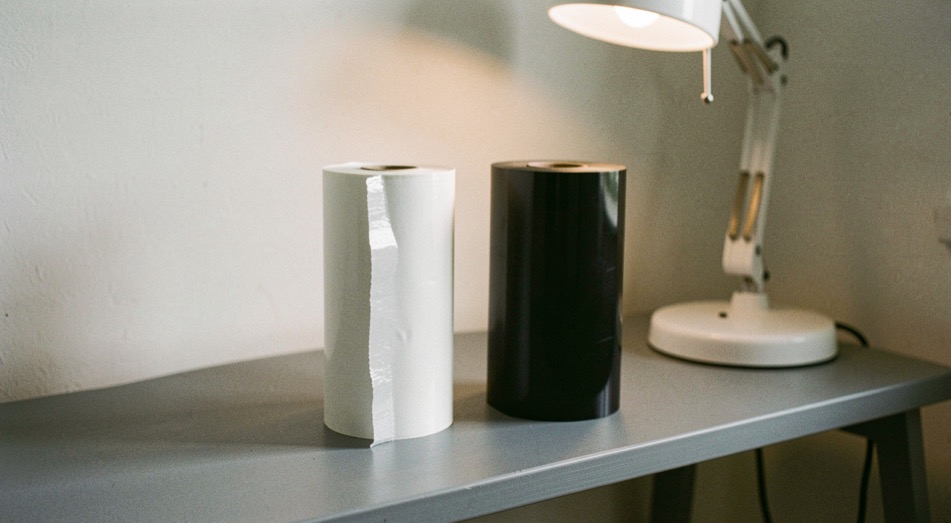

Without instruments, the two films separate on four reads. Held against a lamp, a 2 mil film passes noticeably more light than a 4 mil one. At a cut edge, the thin film ends in a line and the thick one ends in a pale band. Pulled gently between the fingers, the cast film stretches further before it whitens along the pull. And on a curve, the cast film settles at room temperature where the calendered film wants warmth before it agrees to lie down.
Thickness is the first of those reads and the one with consequences, because on a shaft thickness becomes mass. The desk follows that conversion in what a mil weighs. The figures it stands behind, each with the date it was last read, are kept in the spec table, and the return trip of the film, once it is warm and coming off again, is written up in removing a wrap with heat.
| Property | Cast | Calendered |
|---|---|---|
| Route through the machine | Spread as a liquid and dried on a carrier | Pressed between heated rollers |
| Gauges the route reaches | Where the thin gauges live | Where the thick gauges live |
| Memory in the sheet | None: nothing pressed it into line | A direction taken from the roller train |
| Stiffness at equal thickness | Lower | Higher |
| Cut edge under a lamp | Reads as a line | Shows a pale band |
| Fine rules and small lettering | Holds them | Loses the finest of them |
| On a small radius | Settles at room temperature | Wants warmth first |
| Where the desk meets it | Arrow wrap film | Sticker and covering stock |
The table is a reading aid, not a verdict. A bench that holds both films will find the rows confirming themselves in an afternoon; a bench that holds neither has the archive, which is where this page started.
